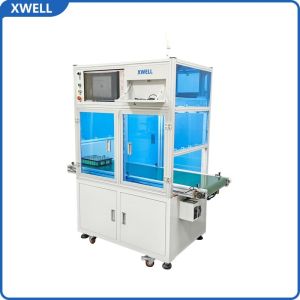

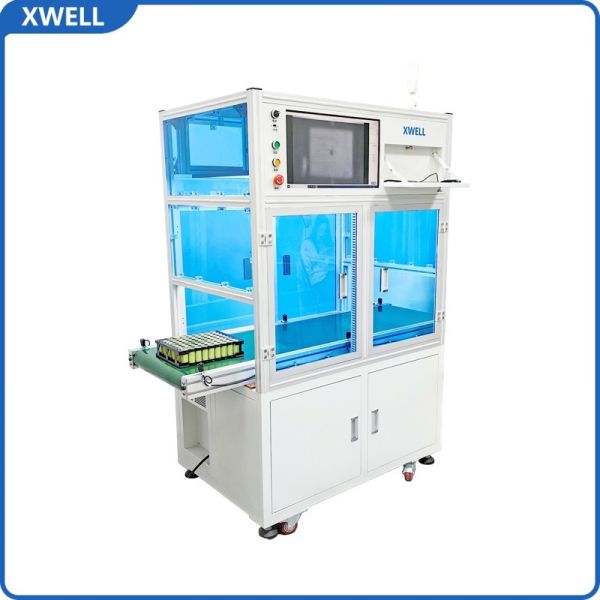

CCD Visual Inspection Equipment For Positive And Negative Battery Electrode Detection

Ⅰ,Introduction

CCD vision detection equipment, in fact, means that through the machine vision product CCD image sensor will be taken into an image signal, transmitted to a dedicated image processing system, according to the distribution of pixels and brightness, color, and other information, a detection device that Converts Signals Into Digital Signals; an image system performs various operations on these signals to extract the characteristics of the target and then control the action of equipment in the field according to the results of discrimination. CCD vision detection equipment can replace the human eye to do measurement and judgment, is used in production, assembly or packaging of valuable equipment. It has higher efficiency and accuracy in detecting whether the batteries are correctly placed in series-parallel positive and negative electrodes and in detecting products with defects in spot welding.

Ⅱ,Configuration parameter

Equipment Power: 600W, 220V AC input, 50Hz.

Function of the device: for the cylindrical cell, the positive and negative electrode data are collected by camera, the number of positive and negative electrodes and the position information of positive and negative electrodes are compared with the sample, the result (NG or OK) is quickly analyzed, and the position of Ng is marked, in order to confirm the positive and negative electrodes of the battery before entering spot welding, and prevent the bad caused by the wrong position of the positive and negative electrodes.

Core Range: cylindrical core 14430/14500/18500/18650/21700/26650/32650, etc.

Suitable Detection Range: 400 * 300 mm, if more customized

After sample collection, 360-degree rotation position can be detected

Parameters set, one-click start detection mode

Simple function setting, easy to understand and operate, no need for on-site training

Specication
