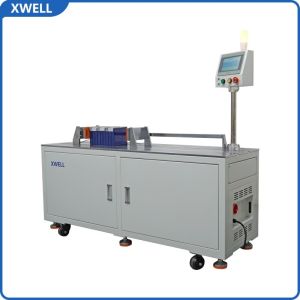

Prismatic Lithium Battery Cell Stacking And Pressing Machine

Description

XW-PC12 is for prismatic battery cell stacking extruder is suitable for prismatic lithium batteries to be stacked and extruded into shape and bundling machine. It adopts servo motor+screw module+planetary reducer for stacking and extruding, controlled by pressure controller, the extrusion stacking thrust reaches more than 100KG, easy to operate, it can control the stacking and extruding stroke and stacking pressure in time, with the triple protection function of software limitation, hardware limitation, and pressure limitation, which won't be over-extruding the batteries and has high controllability in the precision of extruding.

Features

• 7-inch touch screen with PLC for control, easy to operate.
• Adapt to various size of batteries, can be edited and set different parameters, simple and easy to change the type.
• Built-in high-precision pressure sensor, pressure accuracy control within 0.1KG.
• Adopting screw module + servo motor + reducer for control, with large extrusion output force and high positioning accuracy
• Specication

• Equipment Efficiency	50 groups/hour (10PCS battery cells)
  Equipment grafting rate	≥98%
  Extrusion stroke	1000mm
  Stacking maximum pressure	100KG
  Adaptable size range	L:50~250mm；W:20~100mm；H:100~300 mm
  Pressure control error	0.1KG
  Control system	PLC+touch screen
  Input power supply	AC220V/50HZ
  Weight	300kg
  Equipment appearance reference size	L*W*H=1570*500*1400mm

• Picture

•
